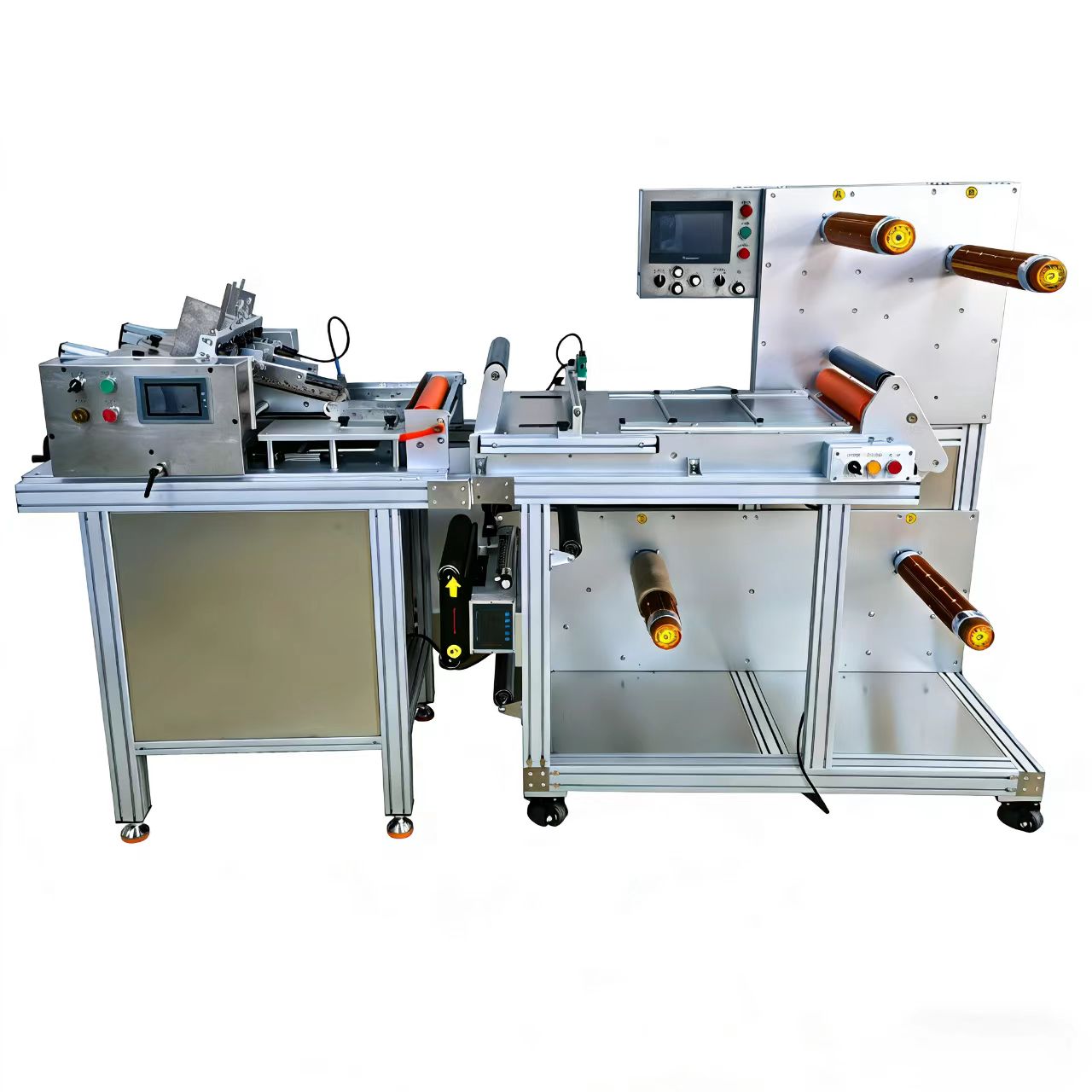

Dual-Function Label Laminating Machine

Dual-Function Label Laminating Machine

1. Maximum instruction manual size: 320 mm (L) × 280 mm (W); Minimum size: 15 mm (L) × 50 mm (W).

2. Maximum liner paper width: 320 mm; Maximum unwinding/rewinding diameter: 600 mm.

3. Maximum unwinding/rewinding diameter for transparent film: 420 mm; Maximum diameter for labeling unwinding/rewinding: 400 mm.

4. Equipped with one set of online deviation correction (Boxin); Correction accuracy: within 0.1 mm. Fitted with rear electric eye bracket and table opening.

5. Automatic tension control based on roll diameter for liner paper unwinding and finished product rewinding; semi-automatic tension for the other three shafts.

- Servo motors for Shaft A, Shaft B and Shaft D rewinding;

- Magnetic powder brakes for Shaft C and Shaft E unwinding tension control.

6. Servo motor (Delta) for liner paper positioning drive roller with electric eye positioning; Delta servo motor for labeling drive with transparent label sensor positioning.

Automatic Feeder

1. Minimum instruction manual size: 30 mm (W) × 150 mm (H); Maximum size: 220 mm (W) × 300 mm (H).

2. Servo motor-driven paging and feeding; Maximum linear speed: 20 m/min; Automatic feeding controlled by photoelectric switch.

3. Cylinder book-stopping stroke: 10 mm; Cylinder book-pushing stroke: 60 mm.

4. Approximate dimensions: L 105 cm × W 60 cm × H 120 cm.
