LSM-370 automatic roll to roll inspection slitting machine

Product Center > LSM-370 automatic roll to roll inspection slitting machine

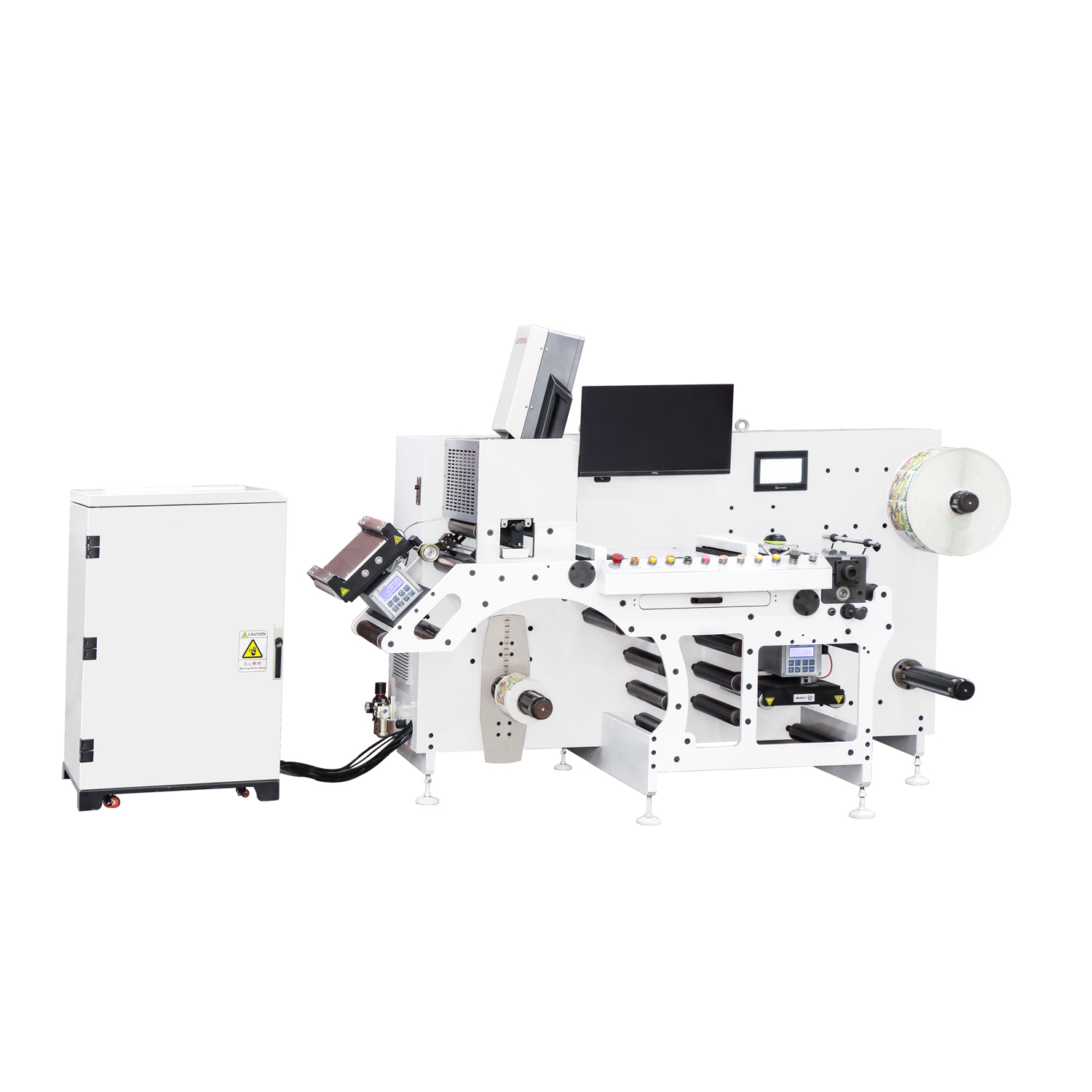

LSM-370 automatic roll to roll inspection slitting machine

Feature:

1. 220meters/min rewind speed with shear slitting system.

2. Mother reel end photocell with automatic stop

3. High efficiency buffer system for quick stop.

4. The professional software of defects managing and modification support connect with slitter rewinder machine to finish the replace jobs.(need inspection system support)

5. Full servo driven with excellent web tension control.

6. Edge trim removal after slitting

7. It can work with other rewind machine for mother inspection machine and replace in other branch rewind machines.


Teachnical Specifications:

Max Web Width

370mm

Max Unwinding Dia

700mm

Max Rewinding Dia

700mm

Max Inspection Web

350mm

Max Machine Speed

220m/min

Slitting accuracy

±0.15mm

Min slitting width

15mm

Power

3 PH+N+PE

Total power

8kw

Air supply

0.8MPa

Overall DiameterL×W×H

2350x1250x1200mm

Weight

1800KGS



Please note the machine speed may be limit by other units.



Detail Configuration:

Main Electrical Part

QTY

Main Control System(PLC)

1PC

HMI

1PC

Web Guiding device

1set

Servo motors

3pcs

Servo drivers

3pcs

Counter Sensor

1PC

Gears&Bearings

NSK or NTN(Japan)
